DO YOU WANT PROTECTION FOR YOUR MACHINES?
CHINOOK is a filter designed to protect electric motors
PROTECTION FROM DUST AND OILY MIST
Industrial facilities, production lines, state of the art electronic machinery all have a common enemy: floating impurities like dust, oily mists or dirt cover the components of every type of machinery.
Protect Electric Motors, Electronic Machines, Compressors and Heat Exchangers with CATCHER protective filters.
CHINOOK
PROTECTION for ELECTRIC MOTORS
DO NOT GAMBLE WITH DOWNTIME
Protecting your motor's lifetime and avoiding the spreading of suspended particles make the case for using Catcher Chinook. Easy installation and replacement thanks to visual control are the basic reasons for protecting industrial electric motors of diverse sizes with Chinook's patented system.
Equipment cleaning can sometimes become a burdening activity. Oversights, overtime workload, large industrial facilities to inspect: some of the many factors that can dissolve the urgency for care of the machinery. Do not gamble with downtime.
TECHNICAL CHARACTERISTICS
CATCHER protective filters are created with standard materials to ensure optimal performance. Constant analysis of the feedback from our customers allows us to improve the quality of the filter family, meeting the needs of an industrial ecosystem inclined towards productivity and environmental protection.
Reduce the possibility of malfunctioning, overheating and sudden stops of the machinery used in industrial facilities.

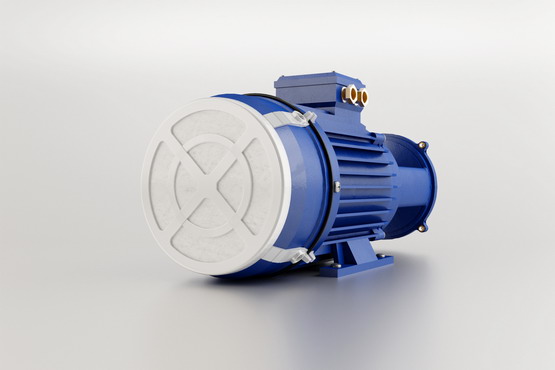

- The filter is applied externally, directly onto the entrance grid of the vent
- Gathers and holds dust and oily mist in its patented-knitted fabric
- Ensures the normal passage of fresh and clean air in the machine
- Protects the engine and avoids the spreading of suspended particles
- Avoids downtime thanks to easy application and replacement
- Visual control allows you to change the filter regularly, ensuring adequate air flow
Chinook TDS
Filter Material for Catcher Chinook
- Type: PRS10A
- Fiber: Polyester
- Colour: WHITE
- Material: Thermobonded
- Weight ISO 9073-1 g/m2: 100
- Thickness ISO 9073-2 mm: 10
- Filter class EN 779: G2
- Initial arrestance EN 779 %: 58
- Average arrestance EN 779 %: 75
- Nominal air flow speed EN 779 m/s: 1.5
- Initial pressure loss EN 779 Pa: 17
- Final pressure loss EN 779 Pa: 250
- Dust holding capacity EN 779 g/m2: 633
- Flammability DIN 53438: F1 / M1
Legend
- LD: Longitudinal direction
- TD: Transversal direction
- LPS: Largest pore size detected
- MFPS: pore size calculated at mean flow
- Units ERT EDANA
- EN or equivalent
FAQ
The first time I install Catcher filters what should I do?
Before installing Catcher be sure the machine's internal filters are clean.
How long does the filter last?
Depends on the environment and the quantity of pollutants, on average a week.
What happens if I leave the filter mounted even when it is very dirty?
The dirt reduces airflow and this may lead to the overheating of the engine or the electronic system.
THEREFORE IT IS IMPORTANT TO CHANGE THE FILTERS REGULARLY AND TO PERFORM PROPER AND CONSTANT MAINTENANCE.
How to dispose of used filters?
The filters are special waste to be treated like any other industrial waste (oily rags, etc.)
Of what material is the plastic wrap?
Polyester
The filter material is fireproof?
TNT in Mistral is natural self-extinguishing;
TNT of Zephir is chemically treated with flame retardant;
Chinook is flame resistant in accordance to DIN 53438: F1 / M1
What are the differences between Mistral and Zephir?
Zephyr has a higher air permeability and greater ability to retain dust and oil.
CHINOOK
A filter that protects electric motors
FILL THE WEB FORM TO RECEIVE A SAMPLE
Electric motors, compressor motors, refrigeration motors and machine tools motors can be protected from dust and oily mist.
We are pleased to know the technical characteristics of your machines in order to satisfy your professional needs.
Catcher Protection will send you via email all the instructions to receive the sample
